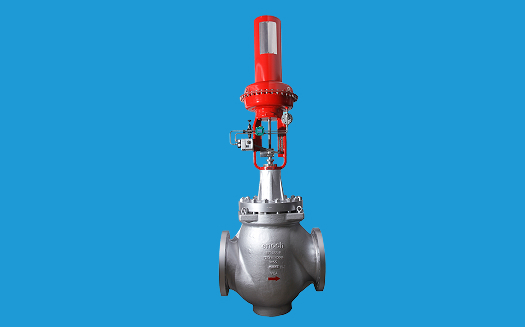

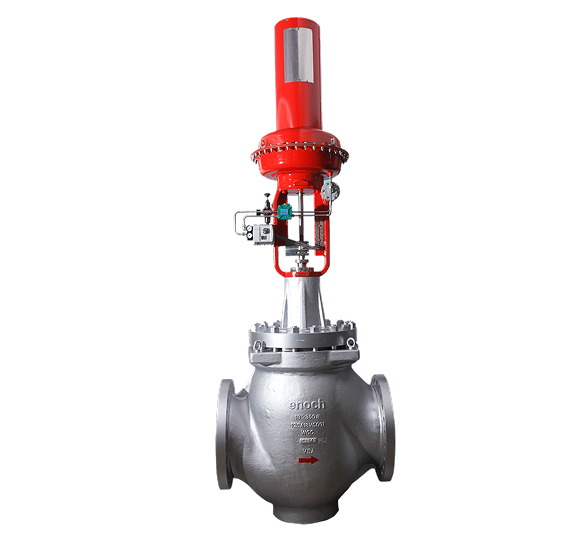

Enoch Controls Range of Top & Bottom Guided Globe Control Valve is compact & simple in Construction.

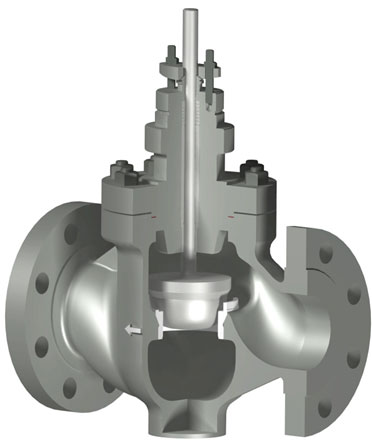

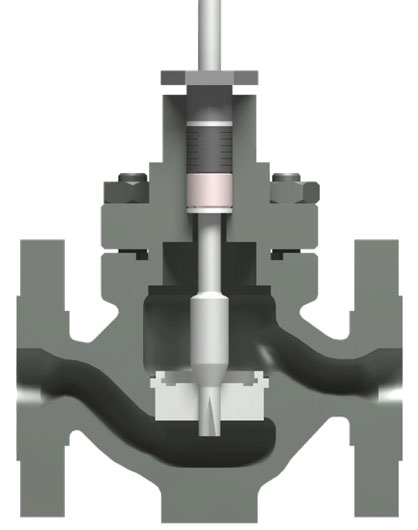

Our Series 15000 & Series 11000 having Top Guiding construction covers, sizes from ½" to 12" with trim options as Contour, Micro Spline & Multi Spline, Our Contour trim, is most suitable for low pressure drop applications. Also, Micro Spline trim is the most ideal choice not only for handling very low flow rates but also for handling high pressure drop and where the potential for cavitation is more.
| Body Series | Series 15000/15100 | Series 11000/11100 |
|---|---|---|
| Body Style | Series 15000 – Globe Type Series 15100 – Angle Type |
Series 15000 – Globe Type Series 15100 – Angle Type |
| Body Sizes | ½" to 8" (25mm to 200mm) | 1" to 12" (25mm to 300mm) ½" to 1" (For Microspline trim) |
| Pressure Rating | ASME 150# to 300# / JIS K / PN etc | ASME 150# to 2500# / JIS K / PN etc |
| End Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld etc | |
| Trim Options | Contour & Micro Spline | Contour, Micro Spline & Multi Stage Micro Spline trim. |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical etc | |
| Body Materials | WCB, WC6, WC9, CF8M, CF3M, CF8.CF3, LCB, LCC etc | |
| Trim Materials | SS 316, SS 420, SS 316L, SS 304, SS 316+Stellite Grade 6, SS 316+PTFE | |
| Rangeability | 50:1 to 30:1 and 120:1 | |
| Flow Characteristics | Linear, Equal Percentage & Modified Equal Percentage. | |
| Leakage Class | For Metal Seat 0.01% of Rated CV & For Soft Seat – Bubble tight shut off | |
| Fluid Temperature | -20˚C to 450˚C | -65˚C to 538˚C |
