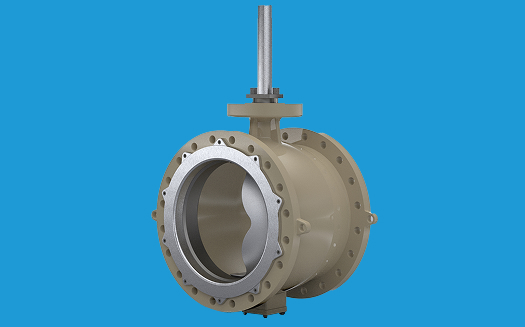

Series 50000/51000 V-Notched ball valves are designed for on/off and throttling applications. These valves have an unrestricted straight through flow design, and provide high capacity for gas, steam, fibrous slurries, or liquids. Our Series is designed with a splined shaft valve body that matches with a variety of actuators to form a dependable high performance control valve ideal for many applications in various processing industries. These valves are designed to overcome the problems of harsh, particle entrained processes, and they also provide accurate, reliable control in a broad range of applications, such as chemical, power and petroleum.
| Body Series | Series 50000 | Series 51000 |
|---|---|---|
| Series | Series 50000 – Wafer Type | Series 51000 – Flanged Type |
| Body Size | 2" to 48" (50mm to 1200mm) | 2" to 48" (50mm to 1200mm) |
| Pressure Rating | ASME 150# to 2500# | ASME 150# to 2500# |
| Body Style | Wafer & Flanged | |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical etc | |
| Body Materials | WCB, CF8M, CF3M, CF8.CF3 etc | |
| Disc Materials | WCB, CF8M, CF3M, CF8.CF3 etc / Stellite or Chrome Plated | |
| Rangeability | 300:1 | |
| Flow Characteristics | Approx. Equal Percentage Inherent flow characteristics | |
| Leakage Class | Class IV & Class VI (Metal Seat & PTFE Seat Respectively) | |
| Fluid Temperature | -196°C to 550°C | -196°C to 550°C |
