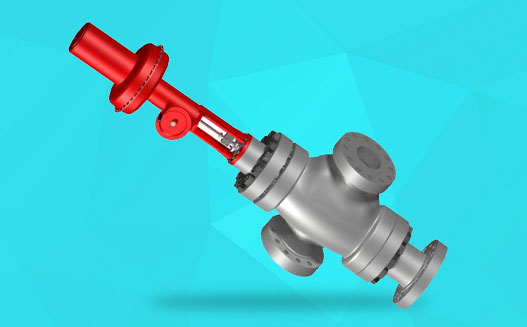

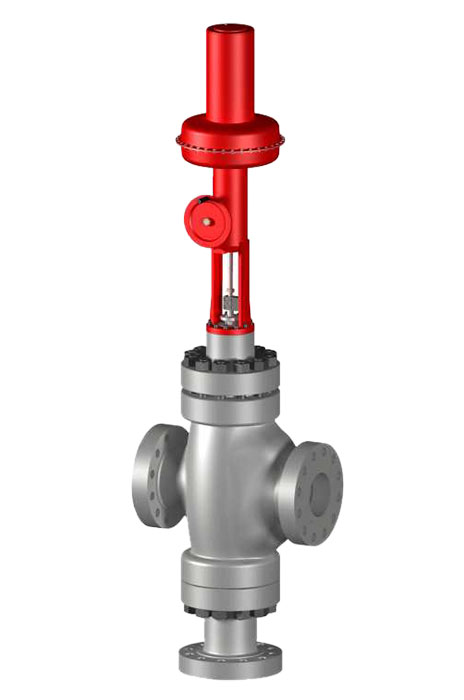

Our series 14000 & series 14100 are developed for Diverting and Mixing flows respectively.
In order to divide the flow in two directions and to mix the two fluids in one direction, our series 14000 and 14100 are suitable, respectively. Seating options are available, both inside and outside. There is also the provision of a balanced plug design for very high differential pressure shut off.
| Body Series | Series 14000/14100 |
|---|---|
| Body Style | Three Way Mixing & Diverting Type |
| Body Sizes | 1.5" to 12" (40mm to 300mm) |
| Pressure Rating | ASME 150# to 2500# / JIS 10K to 40K |
| End Connections | Flanged (RF, RTJ), Butt Weld etc |
| Trim Options | Linear V Port (Skirted type) |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical etc |
| Body Materials | WCB, WC6, WC9, CF8M, CF3M, CF8.CF3, LCB, LCC etc |
| Trim Materials | SS 316, SS 420, SS 316+Stellite Grade 6 etc |
| Rangeability | 30:1 & 60:1 |
| Flow Characteristics | Linear or On-Off |
| Leakage Class | For Metal Seat 0.01% of Rated CV (Leakage Class III) |
| Fluid Temperature | -196˚C to 550˚C |
| Plug Options | Solid & Balanced |
| Bonnet Options | Standard, Extended, Extended with Bellows. |
