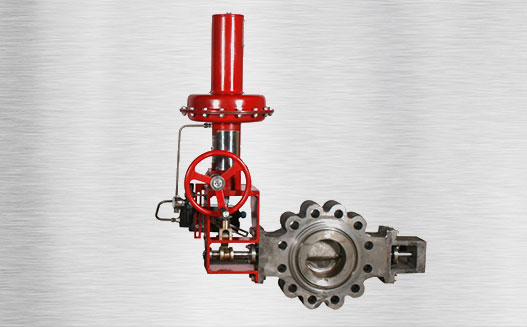

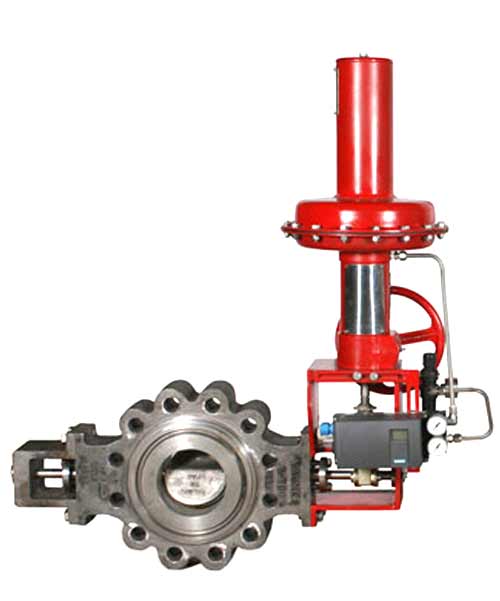

Enoch Controls 'Step-Vane' and 'Swing-Through-Vane' Butterfly Control Valves have been designed and developed for applications where leakage in the closed position is not the problem, but the control of the amount of liquid or gas through the pipe line is paramount. These valves provide excellent throttling performance.
Series 40500 and 40600 Butterfly Control Valves (with Anti-Cavitation/Low Noise Trim) have been designed and developed by Enoch Controls Controls to use in process engineering and industrial applications where the effect of cavitation (due to high liquid pressure drop) cannot be eliminated/handled by Series 40000 and 40100 Butterfly Control Valves.
| Body Series | Series 40000/40100/45000 | Series 40500/40600/45600 |
|---|---|---|
| Series | Series 40000 - Step Vane Type Series 40100 - Swing Through Type |
Series 40500 -Step Vane with Anti-cavitation/Low Noise Trim) Series 40600 - Swing through Vane with Anti-cavitation/Low Noise Trim) |
| Body Size | 2” to 24” (50mm to 600mm) | 2” to 24” (25mm to 600mm) |
| Pressure Rating | ASME 150# to 2500# | ASME 150# to 2500# |
| Body Style | Wafer, Lugged & Double Flanged | |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical etc | |
| Body Materials | WCB,CF8M,CF3M,CF8.CF3 etc | |
| Disc Materials | WCB,CF8M,CF3M,CF8.CF3 etc / Stellite or Chrome Plated | |
| Rangeability | 100:1 | 50:1 |
| Flow Characteristics | Approx. Equal Percentage Inherent flow characteristics | |
| Leakage Class | 0.5% of Rated Cv | 2% of Rated Cv |
| Fluid Temperature | -196°C to 550°C | -196°C to 550°C |
