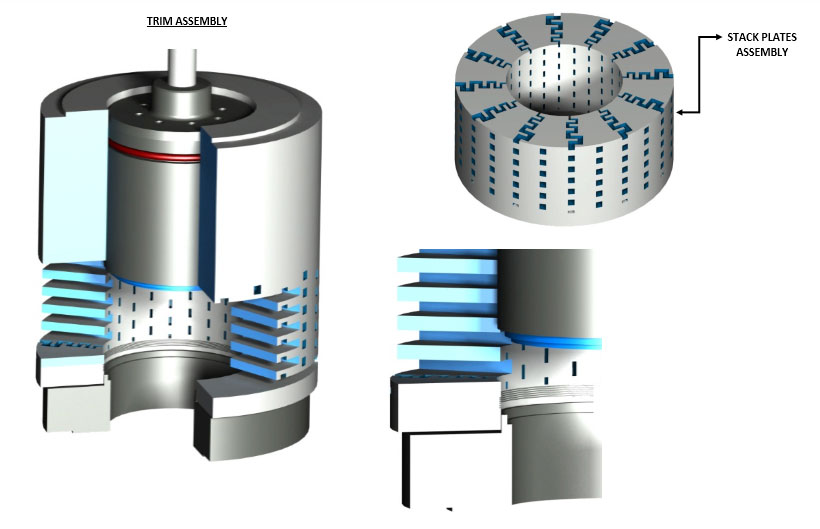

Velocity Control Trim (Velo Trol) - In most of the severe service conditions where very High temperature & High pressure are to be handled our series 12200 & 12250 with Velocity control trim (VeloTRol) is the most suitable trim available to provide accurate control with long life & thereby reducing the Noise/Vibrations formed due to cavitation or erosion damage.

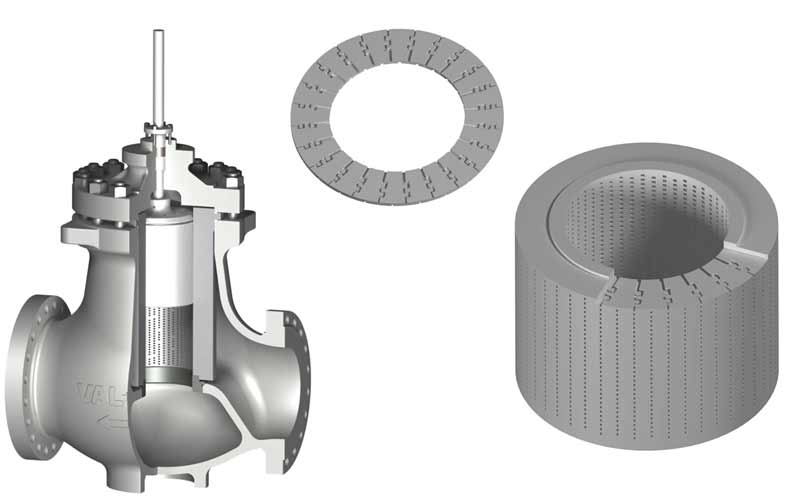

Series 12200 High Pressure Control Valve is designed and developed for applications where the high pressure/drop liquid and high pressure/temperature gas/vapour to be handled. Our VeloTRol, a multi-turn/multi-stage velocity control trim, handles these severe/critical applications very effectively - eliminating cavitation & vibration, and reducing the noise to the acceptable levels. Series 12250 is developed for low/minute flow (Micro Cv) for high pressure drop liquid and gas applications. The velocity control trim (Velotrol), the most superior trim, has enabled control valve to improve its performance and lower its maintenance cost. Also, there is hardly any use of additional silences/Diffusers for noise reduction.
| Body Series | Series 12200/12300 | Series 12250 (Mini-VeloTRol) |
|---|---|---|
| Body Style | Series 12200 - Globe Type Series 12300 - Angle Type |

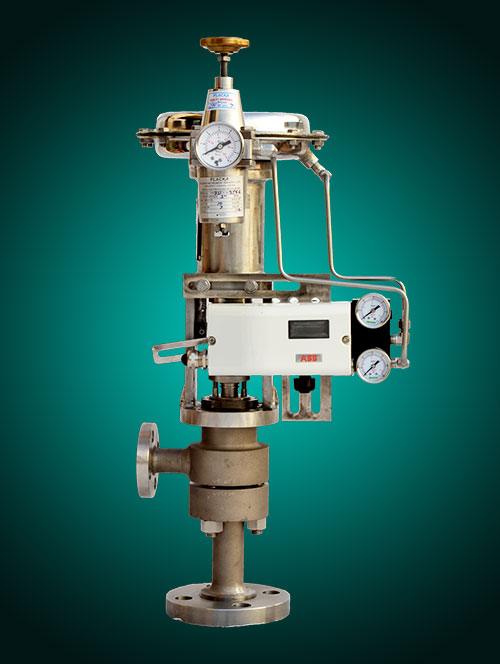

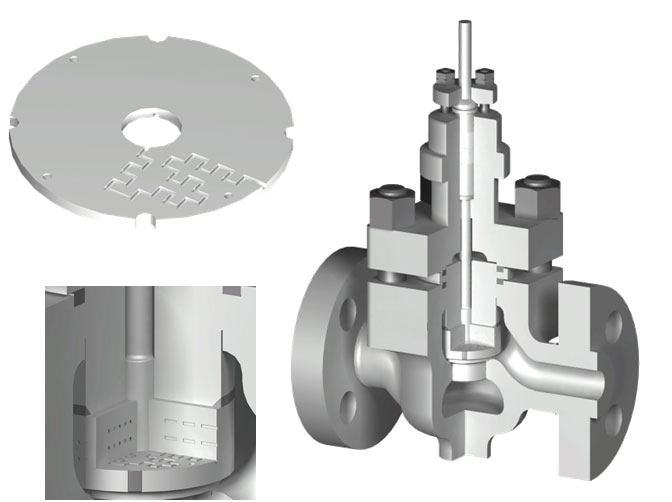

Series 12250 - Globe Type Series 12350 - Angle Type |
| Body Sizes | 1" to 36" (25mm to 900mm) | 1/4" to 2" (6mm to 50mm) |
| Pressure Rating | ASME 150# to 2500# / JIS 10K to 63K | ASME 900# to 2500# /JIS 10 to 63K |
| End Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld, Integral Flanges etc | |
| Trim Options |
VeloTRol
(Velocity Control Trim) (Upto 24 Stage Multi turn multi path) |
VeloTRol (Mini Velocity Control Trim) |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical & Hydraulic etc | |
| Body Materials | WCB, WC6, WC9, CF8M, CF3M, CF8, CF3, LCB, LCC, A105, F11, F22 etc | |
| Trim Materials | SS 316, SS 420, SS 410, Inconel etc | |
| Rangeability | 50:1 to 20:1 | |
| Flow Characteristics | Linear, Modified Equal Percentage & Modified Linear, Dual Linear | |
| Leakage Class | For Metal Seat 0.01% of Rated CV (Leakage Class IV & V) For Soft Seat - Bubble tight shut off (Leakage Class VI) |
|
| Fluid Temperature | -196°C to 550°C | -196°C to 550°C |
| Plug Options | Unbalanced Metal to Metal or Balanced | |
