Our Series 12000 / 15200 is designed and developed for power duty applications where the high pressure / drop water and high pressure / temperature steam are to be handled.
We have range of trim options like single, double, triple & multistage having concentric cages with holes. This can be used to handle high pressure drop flow in order to eliminate the erosion damage due to cavitation and noise / vibrations inside the valve.
| Body Series | Series 12000/12100 | Series 15200/15300 |
|---|---|---|
| Body Style | Series 12000 – Globe Type Series 12100 – Angle Type |
Series 15200 – Globe Type Series 15300 – Angle Type |
| Body Sizes | 1" to 36" (25mm to 900mm) | 1" to 12" (25mm to 300mm) |
| Pressure Rating | ASME 150# to 2500# / JIS K / PN etc | ASME 150# to 600# / JIS K / PN etc |
| End Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld etc | |

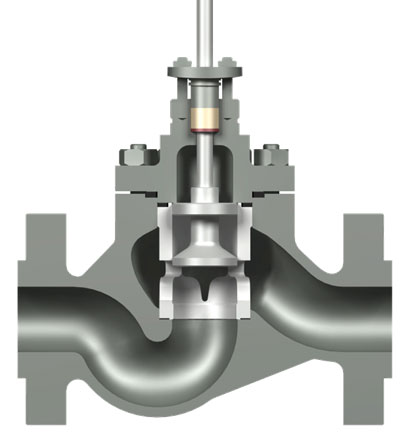

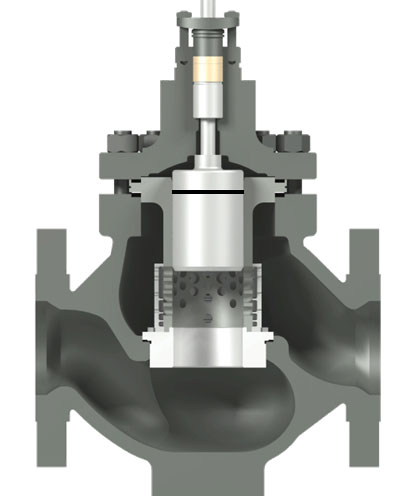

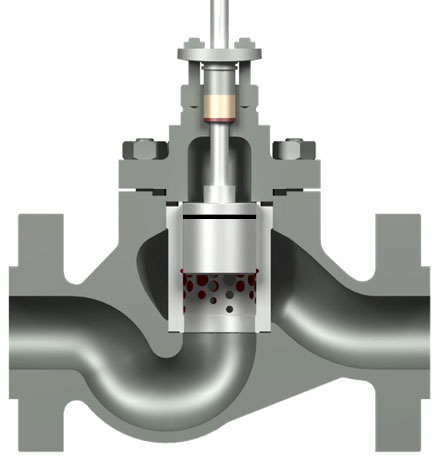

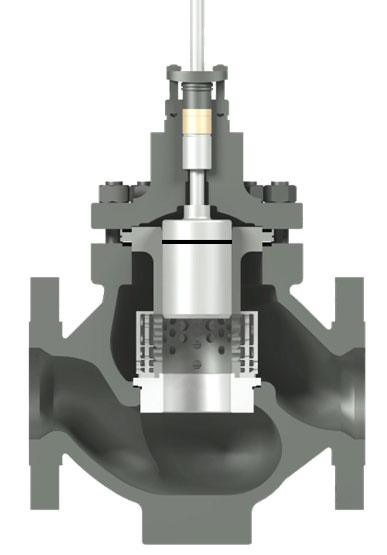

| Trim Options | Ported , MOSS, MODS, MOTS | Ported & MOSS |
| Actuator Options | Pneumatic Diaphragm Actuator, Pneumatic Piston Cylinder, Electrical etc | |
| Body Materials | WCB, WC6, WC9, CF8M, CF3M, CF8.CF3, LCB, LCC, F11, F22 etc | |
| Trim Materials | SS 316, SS 420, SS 316L, SS 304, SS 316+Stellite Grade 6, SS 316+PTFE | |
| Rangeability | 50:1 to 20:1 | |
| Flow Characteristics | Linear, Equal Percentage & Modified Equal Percentage. | |
| Leakage Class | For Metal Seat 0.01% of Rated CV (Leakage Class IV) For Soft Seat – Bubble tight shut off (Leakage Class VI) |
|
| Fluid Temperature | -65˚C to 550˚C | -65˚C to 550˚C |
| Plug Options | Solid & Balanced | |
