Steam Desuperheater is used to spray water into steam so that water get mixed with steam resulting in reduction in the temperature of the outlet steam. Desuperheater can be classified into two
1. Non-Integral type Desuperheater
Desuperheater nozzle and water valve are separate units

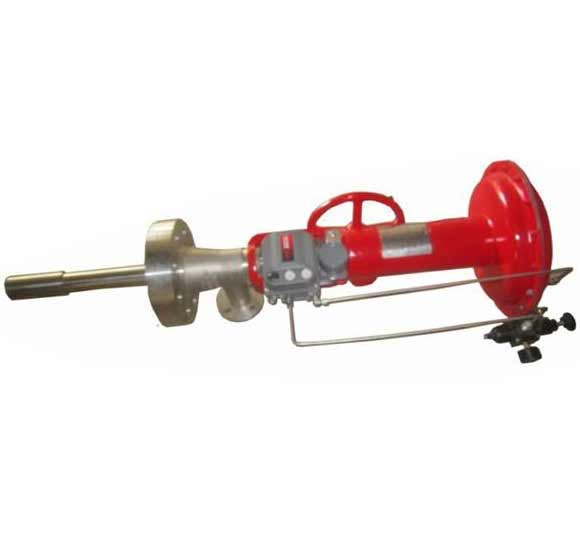

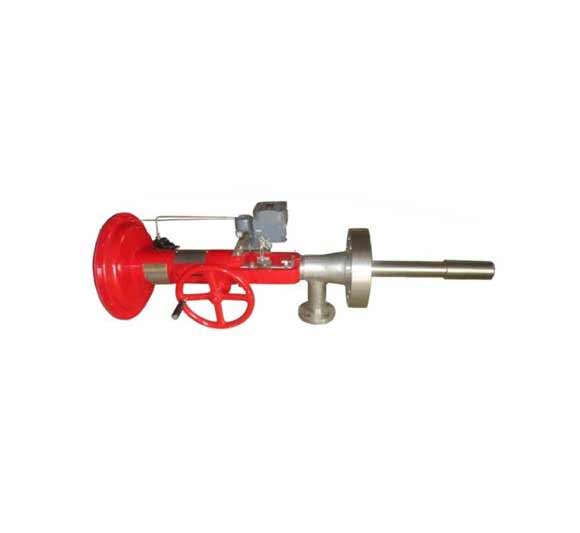

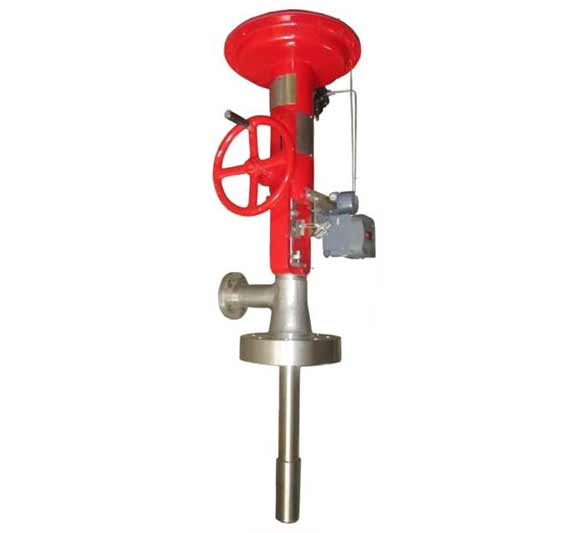

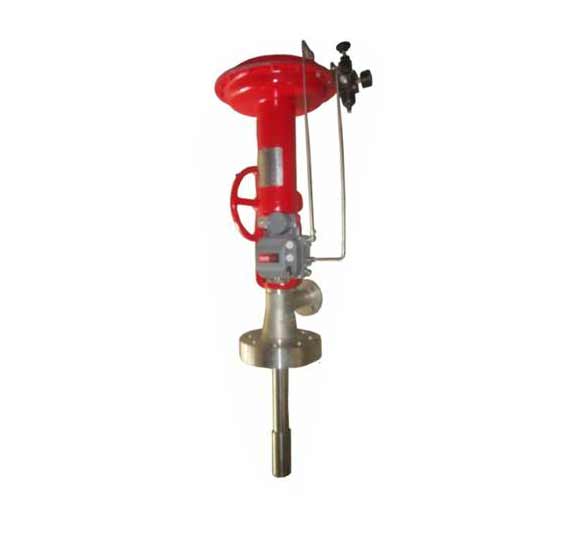

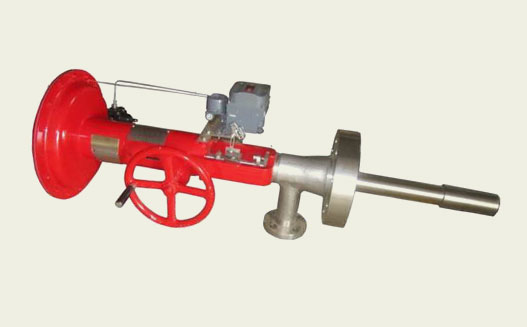

2. Integral type Desuperheater
Desuperheater is in-built with actuator so that there is no need to separate spray water valve
1. Venturi type
Nozzle orifice is fixed irrespective of flow variation
2. Variable orifice
Orifice area opening will vary according to the flow and pressure variations
| Body Series | Series 60000 |
|---|---|
| Body Type | Variable Area Nozzles Spray Pipeline Desuperheater |
| Body Sizes | 1.1/2" X 3" or 2" X 4" depending upon capacity & rating |
| Pressure Rating | ASME 150# to 2500# |
| End Connections | Steam Pipe -Flanged/Butt Weld Water Pipe - Flanged |
| Leakage Class | Class IV (ANSI FCI/70-2) |
| Inherent Characteristics | Linear & Equal % |
| Actuator Options | Pneumatic Spring Return Diaphragm |
| Body Series | Series 61000 |
|---|---|
| Body Type | Fixed Area Nozzle Spray Pipeline Desuperheater |
| Body Sizes | 1" to 24" |
| Pressure Rating | ASME 150# to 1500# |
| End Connections | Steam Pipe -Flanged/Butt Weld Water Pipe - Flanged |
| Leakage Class | Class IV (ANSI FCI/70-2) |
| Inherent Characteristics | Linear & Equal % |
| Body Series | Series 62500 |
|---|---|
| Body Type | Fixed Area Nozzle Spray Pipeline Venturi Desuperheater |
| Body Sizes | 1.1/2” X 3” or 2” X 4” depending upon capacity & rating |
| Pressure Rating | ASME 150# to 1500# |
| End Connections | Steam Pipe -Flanged/Butt Weld Water Pipe – Flanged/Butt Weld |
| Steam Pipe | 6" to 48" |
| Inherent Characteristics | Linear & Equal % |
