Steam PRDS is used for Steam Conditioning Services for the reduction of pressure and temperature of steam. It is a combination of Control Valve for the pressure reduction purpose and atomizing nozzles through which water is sprayed into steam for reducing the temperature.
1. Combined PRDS
Both PRV and Desuperheater in a compact single unit
2. Split PRDS
Separate PRV and Desuperheater

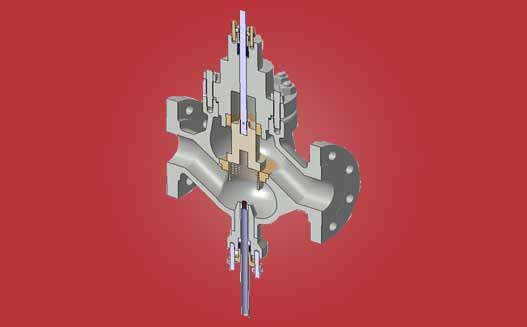

| Body Series | Series 70000 |
|---|---|
| Body Type | Combined PRDS/Steam Converting Valve with water injection by Single Nozzle-Globe Type |
| Body Sizes | Depending upon requirement |
| Pressure Rating | ASME 150# to 2500# |
| End Connections | Flanged (RF, RTJ), Butt Weld etc |

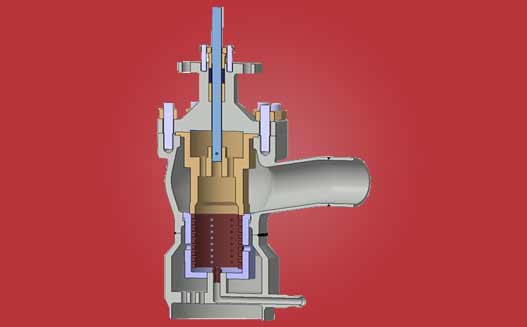

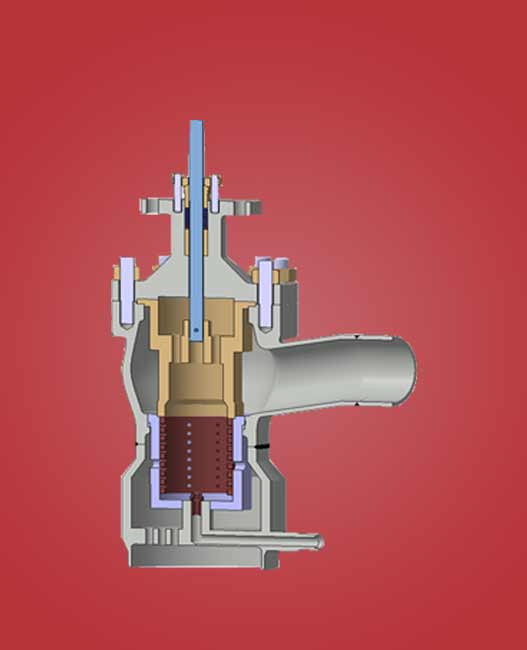

| Body Series | Series 70500 |
|---|---|
| Body Type | Combined PRDS/Steam Converting Valve with water injection by Single Nozzle-Angle Type |
| Body Sizes | Depending upon requirement |
| Pressure Rating | ASME 150# to 2500# |
| End Connections | Flanged (RF, RTJ), Butt Weld etc |

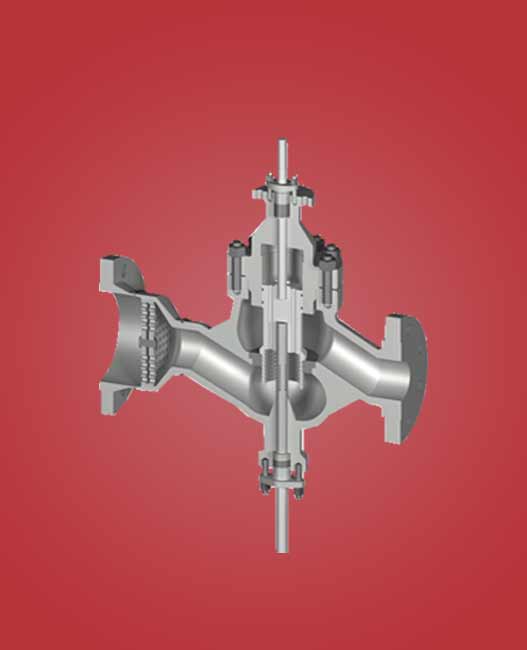

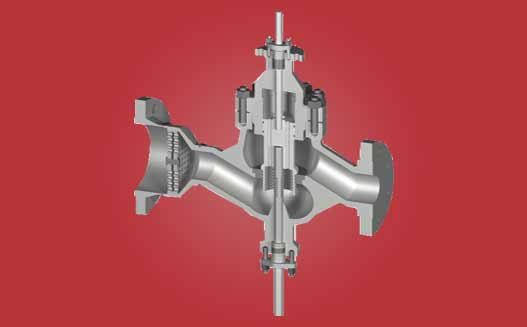

| Body Series | Series 71000 |
|---|---|
| Body Type | Combined PRDS/Steam Converting Valve with water injection by Orifice tube, Globe Type |
| Body Sizes | Depending upon requirement |
| Pressure Rating | ASME 150# to 2500# |
| End Connections | Flanged (RF, RTJ), Butt Weld etc |
